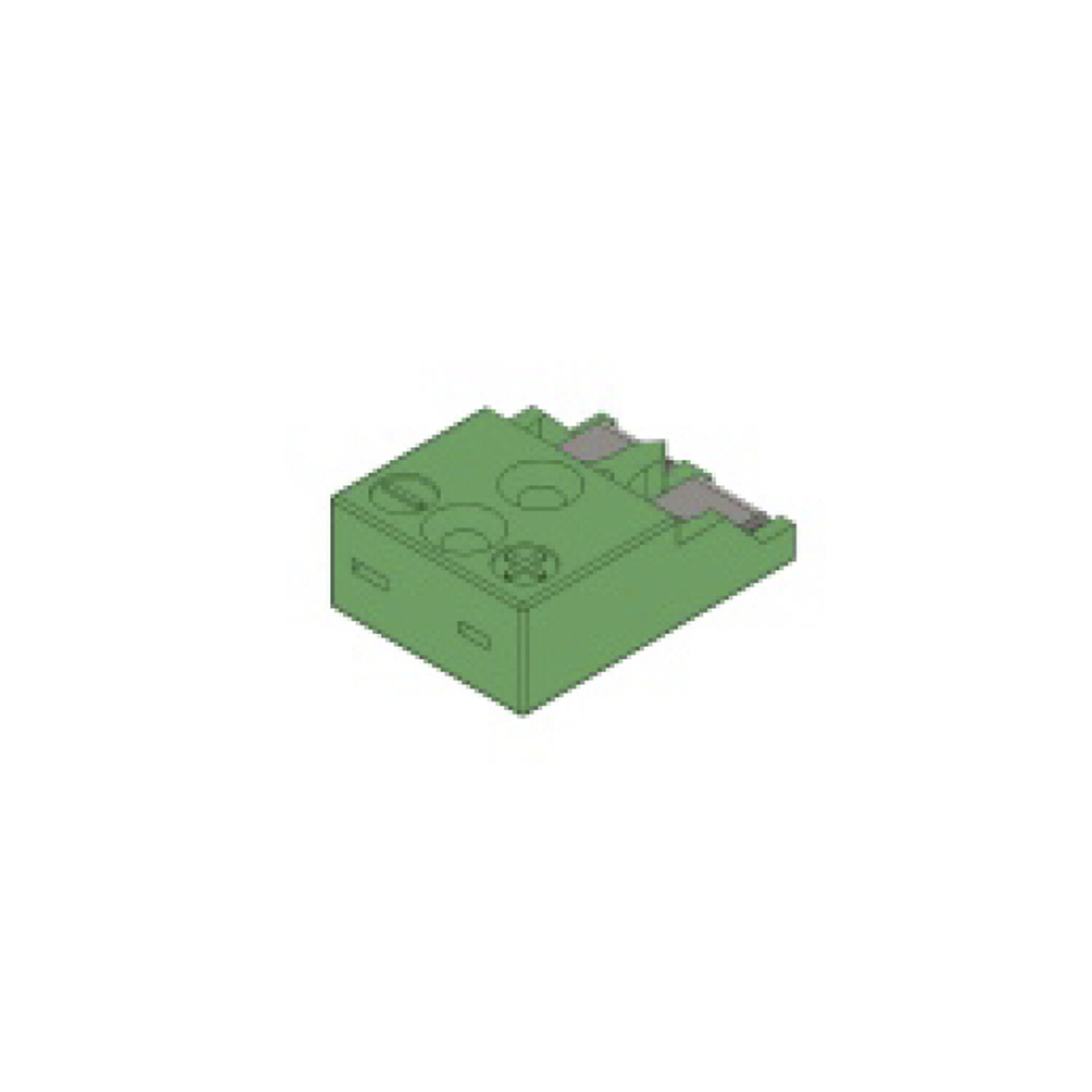

Miniature Connectors Panel Connectors

$0.00

Body: Thermoplastic

Contacts: Class 1material, reverse polarity protected
→ Plug with coded flat contacts
→ Socket with spring loaded contacts

Terminal: Captive screw and plate

Temperature Rating: Up to 250°C

Standard: EN50212

Body: Thermoplastic

Contacts: Class 1material, reverse polarity protected
→ Plug with coded flat contacts
→ Socket with spring loaded contacts

Terminal: Captive screw and plate

Temperature Rating: Up to 250°C

Standard: EN50212

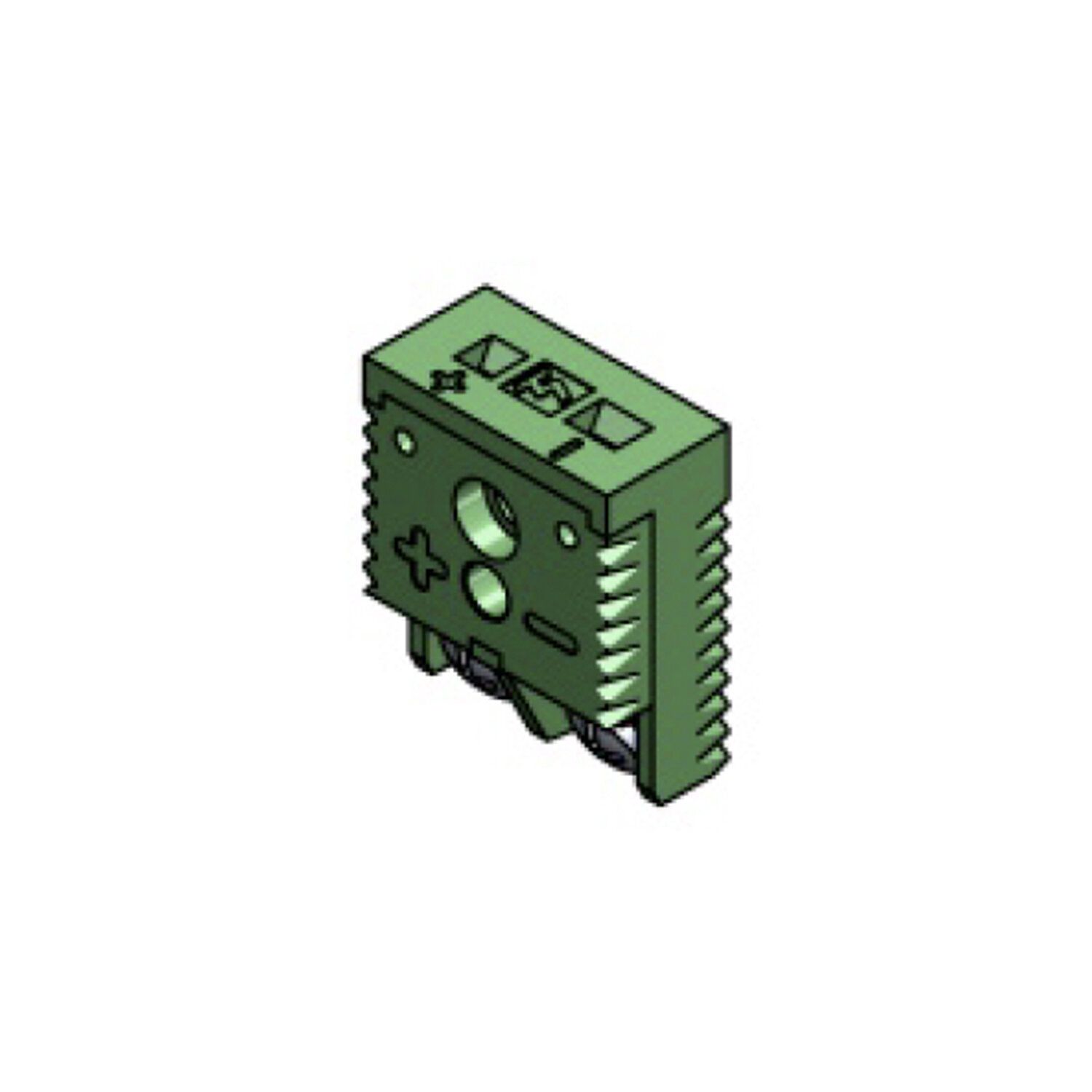

Basic Panel Insert Back mounted with assembly set

Basic Panel Insert Back mounted with assembly set

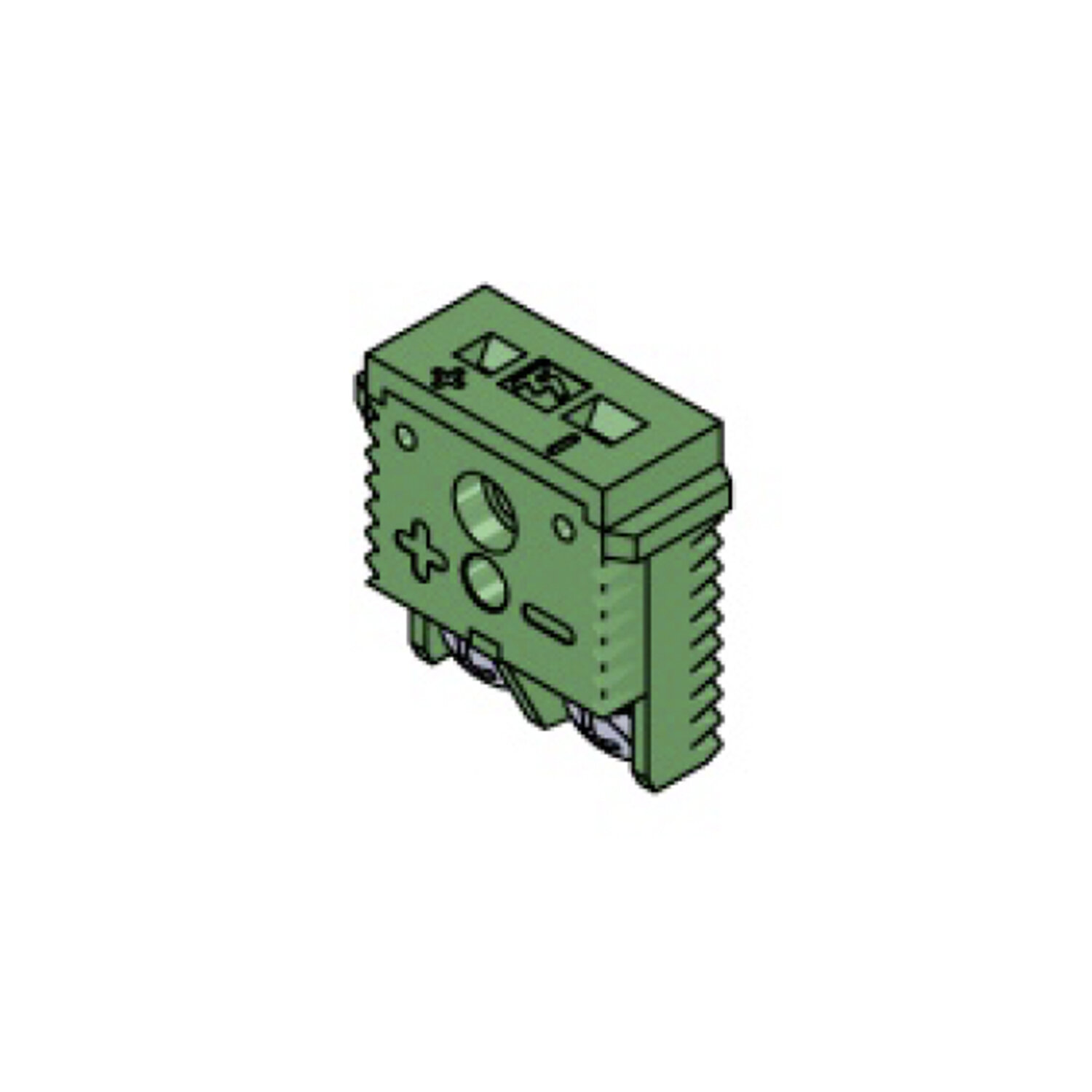

Collar Insert Back mounted with assembly set

Collar Insert Back mounted with assembly set

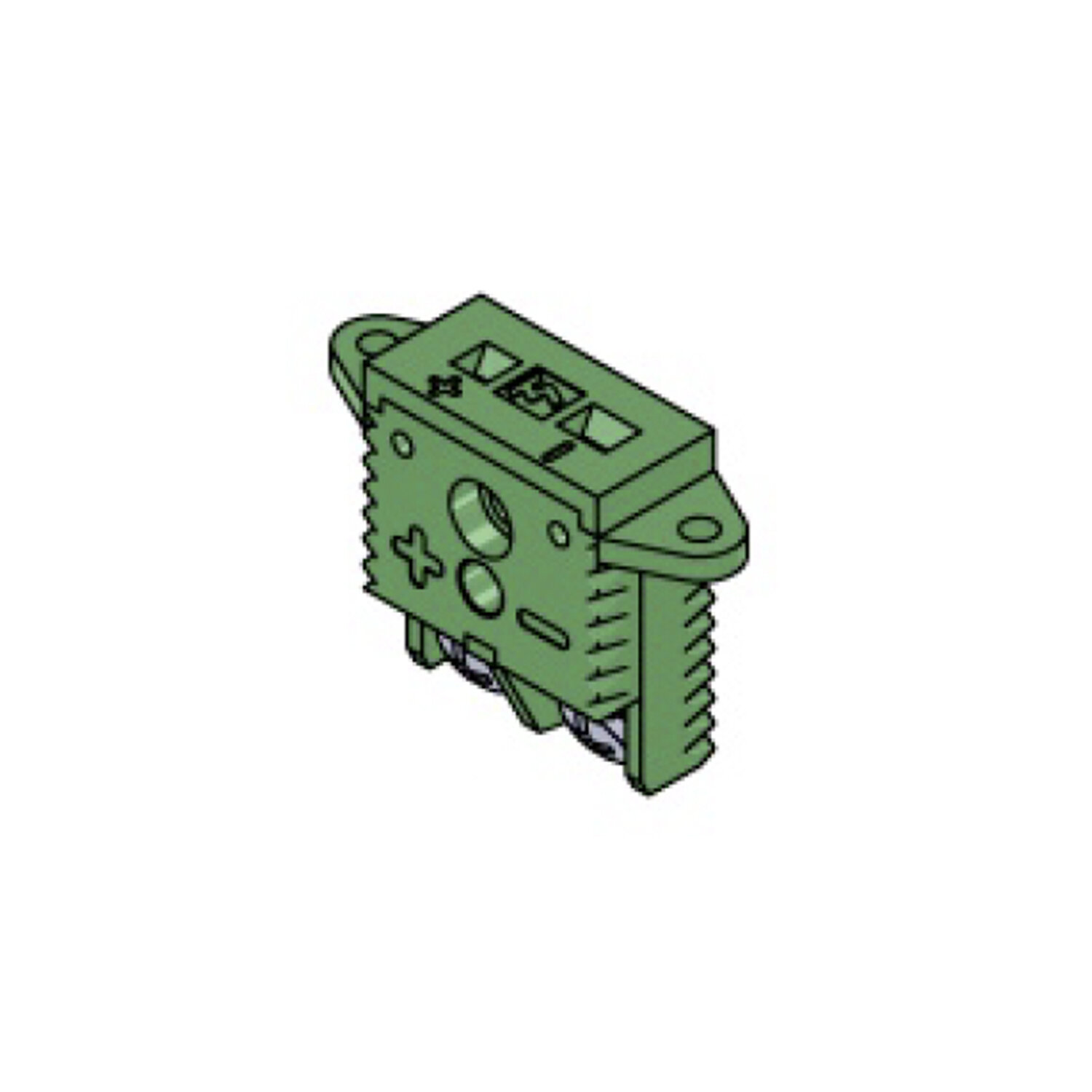

Lug Insert Front mounted with screws

Lug Insert Front mounted with screws

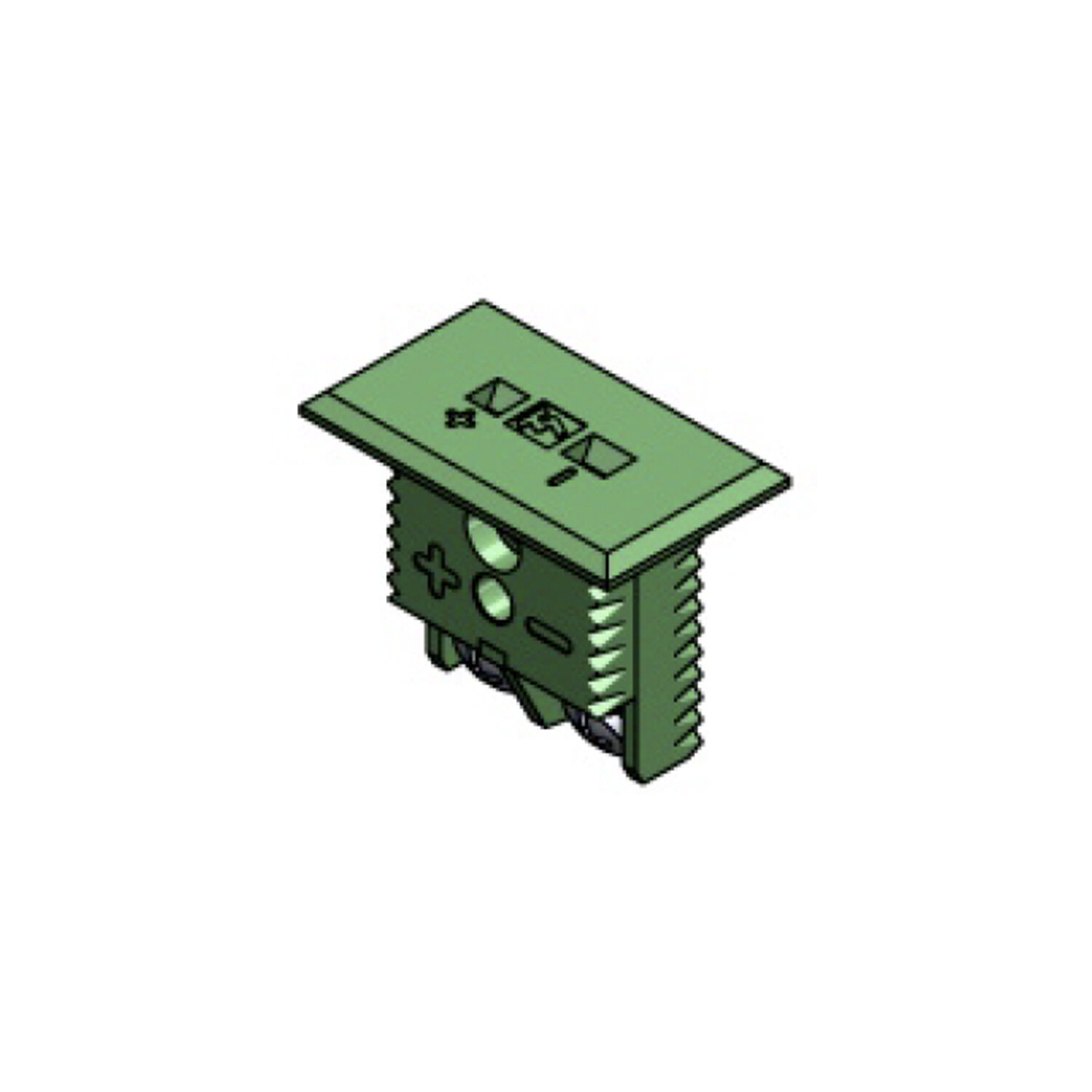

Rectangular Insert Front mounted with brass nut and spring set

Rectangular Insert Front mounted with brass nut and spring set

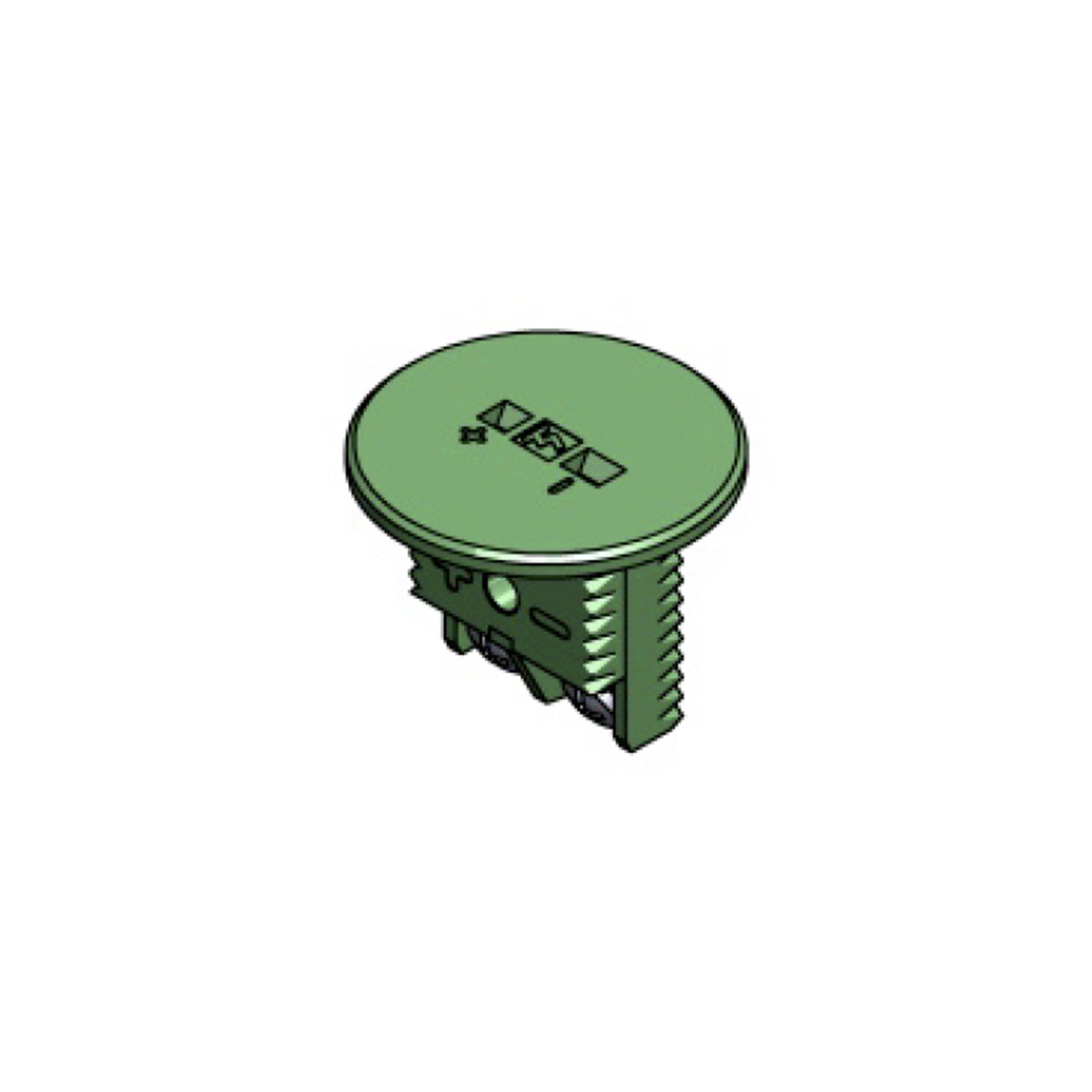

Round Insert Back mounted with brass nut and spring set

Round Insert Back mounted with brass nut and spring set

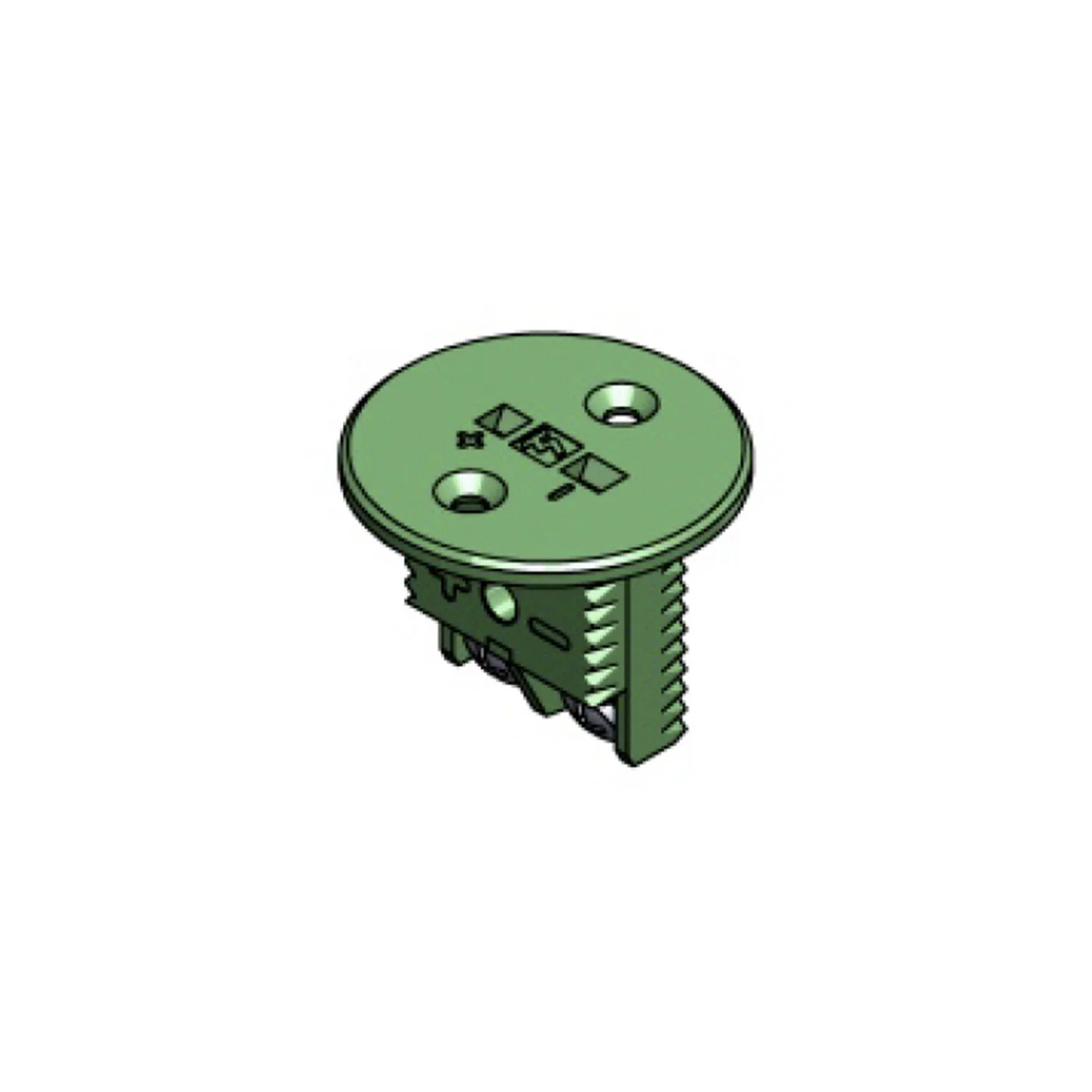

Round Insert Front mounted with screws

Round Insert Front mounted with screws

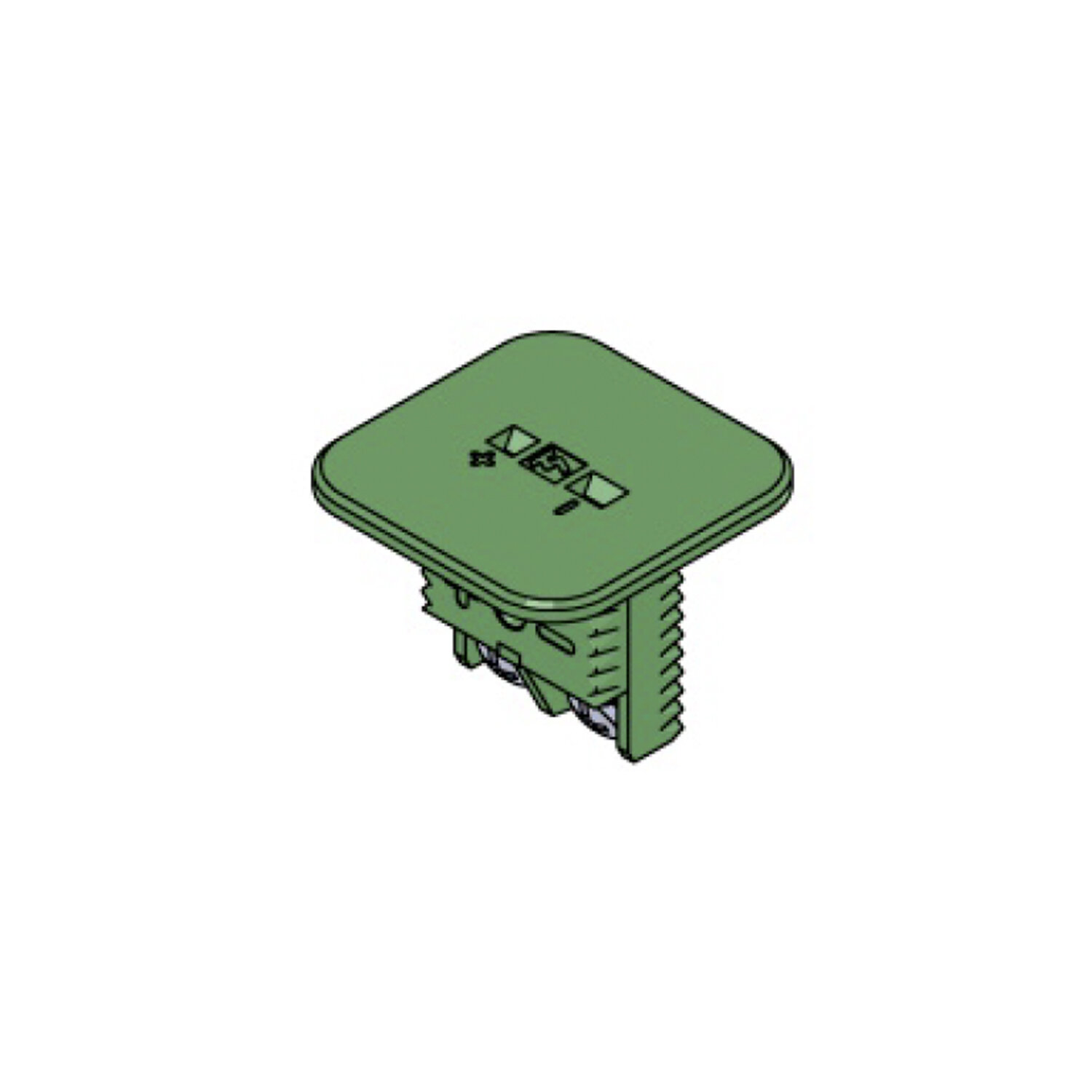

Square Insert Back mounted with brass nut and spring set

Square Insert Back mounted with brass nut and spring set

Square Insert Front mounted with screws

Square Insert Front mounted with screws

TypeIECANSI
KGreen Yellow
JBlack Black
TBrown Blue
BGrey Grey
R/SOrange Green
EPurple Purple
NPink Orange

Colour Coding to DIN EN 60584



To see the full range of products we provide, please download the PDF below for a detailed overview on specifications.
