WATER DURANA LL - WATER HOSE
Water suction and disharge hose
Application: hardwall hose for suction and discharge of water and non corrosive liquids, suitable to be rolled up on mono-spiral hose reels. The robust construction enables the hose to withstand its weight without flattening. They are typically used in construction sites and daylight mines to spray water in order to prevent the dust from raising and in carbon deposits.
Temperature: from -30°C (-22°F) to +70°C (+158°F).

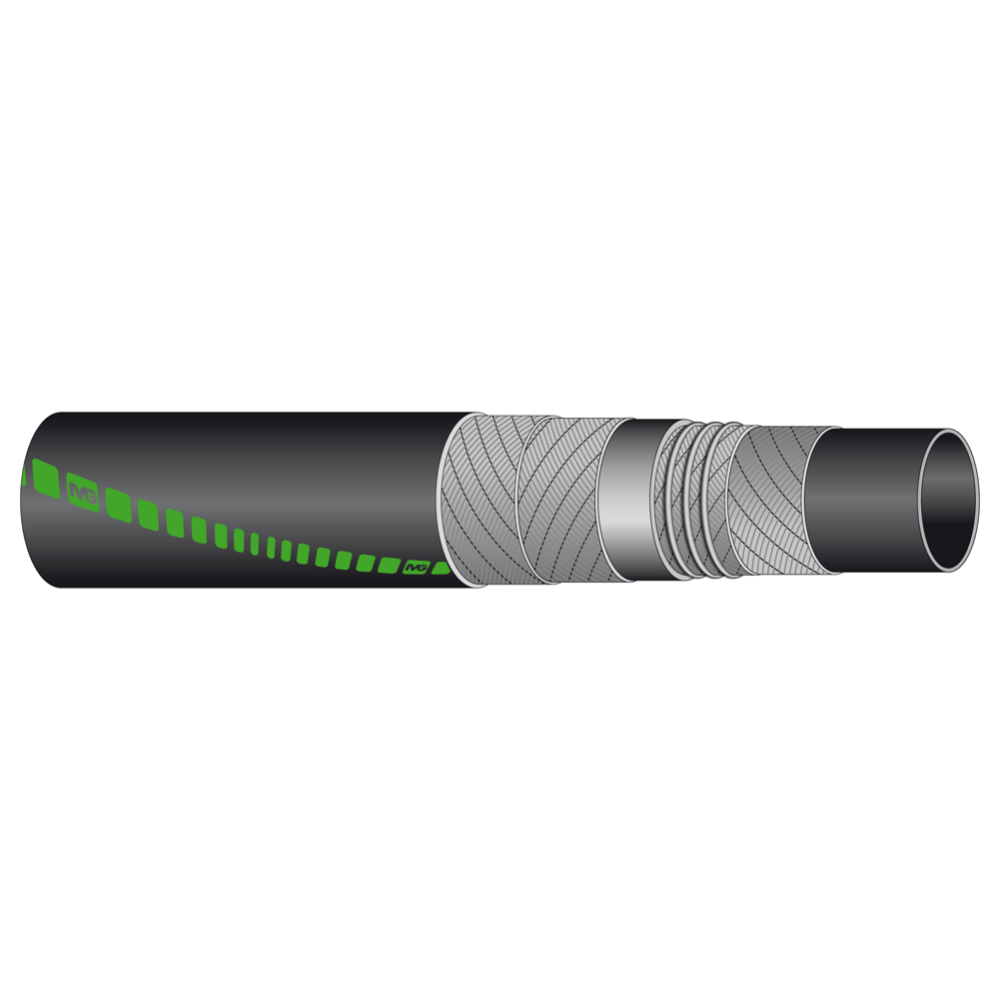

CONSTRUCTION
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord, and helix wire.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering and ozone resistant.
Branding: continuous green stripe “IVG Water (family logo)…”.
Available upon request: 1. Different diameters 2. Different working pressures.
Water suction and disharge hose
Application: hardwall hose for suction and discharge of water and non corrosive liquids, suitable to be rolled up on mono-spiral hose reels. The robust construction enables the hose to withstand its weight without flattening. They are typically used in construction sites and daylight mines to spray water in order to prevent the dust from raising and in carbon deposits.
Temperature: from -30°C (-22°F) to +70°C (+158°F).
CONSTRUCTION
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord, and helix wire.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering and ozone resistant.
Branding: continuous green stripe “IVG Water (family logo)…”.
Available upon request: 1. Different diameters 2. Different working pressures.
Water suction and disharge hose
Application: hardwall hose for suction and discharge of water and non corrosive liquids, suitable to be rolled up on mono-spiral hose reels. The robust construction enables the hose to withstand its weight without flattening. They are typically used in construction sites and daylight mines to spray water in order to prevent the dust from raising and in carbon deposits.
Temperature: from -30°C (-22°F) to +70°C (+158°F).
CONSTRUCTION
Tube: black, smooth, synthetic rubber.
Reinforcement: high strength synthetic cord, and helix wire.
Cover: black, smooth (wrapped finish), synthetic rubber, weathering and ozone resistant.
Branding: continuous green stripe “IVG Water (family logo)…”.
Available upon request: 1. Different diameters 2. Different working pressures.
| CODE | INSIDE DIAMETER (MM) | OUTSIDE DIAMETER (MM) | WORKING PRESSURE (PSI) | BURST PRESSURE (PSI) | WEIGHT NOMINAL KG/M | MIN REEL SIZE (MM) | VACUUM BAR | LENGTH MAX (M) |
|---|---|---|---|---|---|---|---|---|
| 1398113 | 32 | 50 | 150 | 600 | 1.62 | 450 | 0.9 | 120 |
| 1398113 | 32 | 50 | 150 | 600 | 1.62 | 450 | 0.9 | 120 |
| 1410903 | 38 | 55 | 150 | 600 | 1.62 | 550 | 0.9 | 120 |
| 1342207 | 51 | 68 | 150 | 600 | 2.36 | 700 | 0.9 | 120 |
| 1259652 | 63.5 | 82.5 | 150 | 600 | 3.39 | 900 | 0.9 | 120 |
| 1409875 | 76 | 97 | 150 | 600 | 3.98 | 1050 | 0.9 | 120 |
| 1378961 | 100 | 127 | 150 | 600 | 6.61 | 1400 | 0.9 | 120 |
