VICTORIA - STEAM HOSE

$0.00

Steam hose for 210°C

Application: steel cord hose for saturated steam at a maximum wor- king pressure 18 bar (261psi), used in the chemical industry, petro- chemical and industrial applications in general. Not recommended for steam cleaner. The hose can be used for peaks of superheated steam at 230°C and at 18 bar. Attention: the use of superheated steam redu- ces the hose life. For longer life drain after use.
Temperature: from -40°C (-40°F) to +210°C (+410°F).

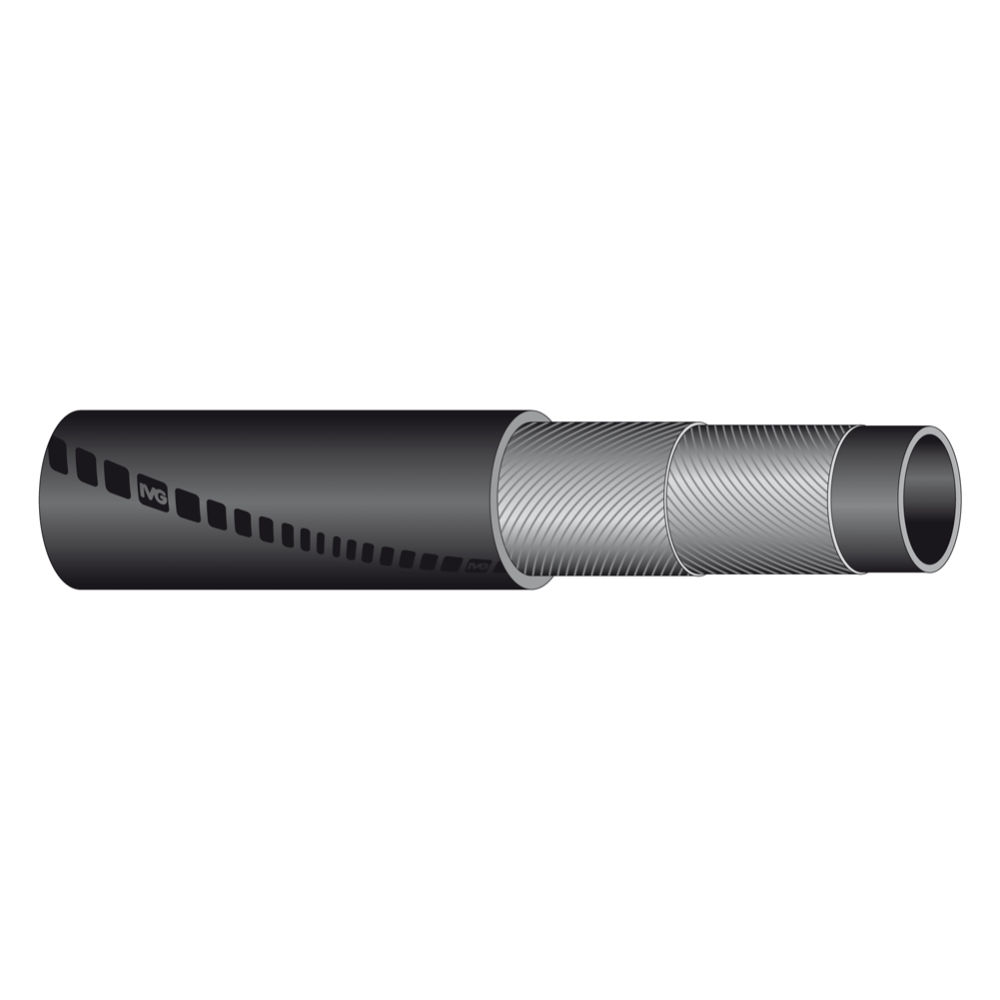

CONSTRUCTION

Tube: black, smooth, EPDM rubber, resistant to saturated steam.
Reinforcement: inserts of steel wire.
Cover: black, pin pricked, smooth (wrapped inish), EPDM rubber with excellent resistance to high temperatures, weathering, abrasion and ageing.
Branding: embossed marking “IVG Steam Victoria...”.
Also available upon request: 1.Victoria with tube in accordance to FDA, W.P. 6 bar 2.Different diameters 3. Red cover.

Steam hose for 210°C

CONSTRUCTION

CODE	INSIDE DIAMETER (MM)	OUTSIDE DIAMETER (MM)	WORKING PRESSURE (PSI)	BURST PRESSURE (PSI)	WEIGHT NOMINAL KG/M	LENGTH MAX (M)
1113615	10	21	270	2700	0.37	60
1236580	13	25	270	2700	0.50	60
1209990	16	28	270	2700	0.58	60
1180070	19	31	270	2700	0.66	60
1186280	25	37	270	2700	0.88	60
1188437	32	46.5	270	2700	1.29	60
1221566	51	66.5	270	2700	2.28	60
1147579	63.5	81.5	270	2700	3.33	60
1210610	76	96.5	270	2700	4.34	60
