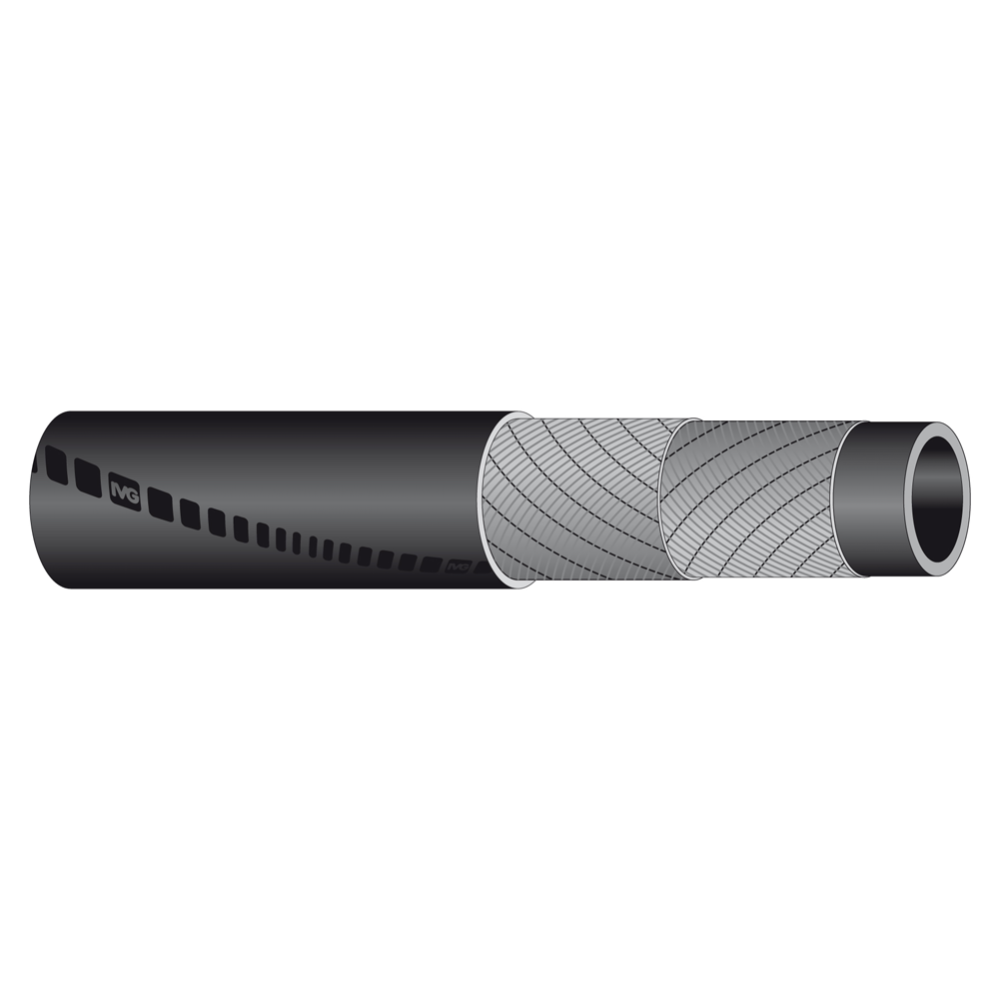

MANITOBA - STEAM HOSE
Steam hose for 165°C
Application: softwall steam hose, textile reinforced, recommended for use with saturated steam at a maximum working pressure of 6 bar (90 psi). For longer life drain after use.
Temperature: from -40°C (-40°F) to +165°C (+329°F).
CONSTRUCTION
Tube: black, smooth, EPDM rubber, resistant to saturated steam.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped inish), EPDM rubber, resistant to high temperatures, weathering and ozone.
Branding: continuous embossed marking “IVG Steam Manitoba...”.
Also available upon request: 1.Different diameters 2.Cover in different colours.
Steam hose for 165°C
Application: softwall steam hose, textile reinforced, recommended for use with saturated steam at a maximum working pressure of 6 bar (90 psi). For longer life drain after use.
Temperature: from -40°C (-40°F) to +165°C (+329°F).
CONSTRUCTION
Tube: black, smooth, EPDM rubber, resistant to saturated steam.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped inish), EPDM rubber, resistant to high temperatures, weathering and ozone.
Branding: continuous embossed marking “IVG Steam Manitoba...”.
Also available upon request: 1.Different diameters 2.Cover in different colours.
Steam hose for 165°C
Application: softwall steam hose, textile reinforced, recommended for use with saturated steam at a maximum working pressure of 6 bar (90 psi). For longer life drain after use.
Temperature: from -40°C (-40°F) to +165°C (+329°F).
CONSTRUCTION
Tube: black, smooth, EPDM rubber, resistant to saturated steam.
Reinforcement: high strength synthetic cord.
Cover: black, smooth (wrapped inish), EPDM rubber, resistant to high temperatures, weathering and ozone.
Branding: continuous embossed marking “IVG Steam Manitoba...”.
Also available upon request: 1.Different diameters 2.Cover in different colours.
| CODE | INSIDE DIAMETER (MM) | OUTSIDE DIAMETER (MM) | WORKING PRESSURE (PSI) | BURST PRESSURE (PSI) | WEIGHT NOMINAL KG/M | LENGTH MAX (M) |
|---|---|---|---|---|---|---|
| 1023799 | 10 | 21 | 90 | 900 | 0.28 | 120 |
| 1023829 | 12 | 23 | 90 | 900 | 0.32 | 120 |
| 1023837 | 13 | 23 | 90 | 900 | 0.29 | 120 |
| 1230697 | 16 | 27 | 90 | 900 | 0.39 | 120 |
| 1023926 | 19 | 29 | 90 | 900 | 0.39 | 120 |
| 1023934 | 19 | 31 | 90 | 900 | 0.50 | 120 |
| 1023993 | 25 | 37 | 90 | 900 | 0.59 | 120 |
| 1024043 | 30 | 45 | 90 | 900 | 0.87 | 120 |
| 1024051 | 32 | 46.5 | 90 | 900 | 0.89 | 120 |
| 1024108 | 38 | 54 | 90 | 900 | 1.17 | 120 |
| 1024370 | 51 | 68 | 90 | 900 | 1.63 | 120 |
If you require any further information, please contact
our sales team on +44 (0)1772 851370 or
PRODUCT DOWNLOADS
Click below for a technical data sheet for this product
