Premier Technologies Group Chimney Nozzle
The Chimney Rose is a low flow nozzle with a 360º spray pattern. A ½” Hose Tail allows connection to a length of hose, with a female thread to suit a Universal Chimney Rod.
The Chimney Hose can then be connected and operated via a stirrup pump or as part of PHT’s Chimney Fire Hose Assembly, which is controlled with a Quick Release Ball Valve Unit, with the water supplied by the HP Hose Reel Tubing.
The Chimney Rose is a low flow nozzle with a 360º spray pattern. A ½” Hose Tail allows connection to a length of hose, with a female thread to suit a Universal Chimney Rod.
The Chimney Hose can then be connected and operated via a stirrup pump or as part of PHT’s Chimney Fire Hose Assembly, which is controlled with a Quick Release Ball Valve Unit, with the water supplied by the HP Hose Reel Tubing.
The Chimney Rose is a low flow nozzle with a 360º spray pattern. A ½” Hose Tail allows connection to a length of hose, with a female thread to suit a Universal Chimney Rod.
The Chimney Hose can then be connected and operated via a stirrup pump or as part of PHT’s Chimney Fire Hose Assembly, which is controlled with a Quick Release Ball Valve Unit, with the water supplied by the HP Hose Reel Tubing.
Key features:
360º Spray pattern

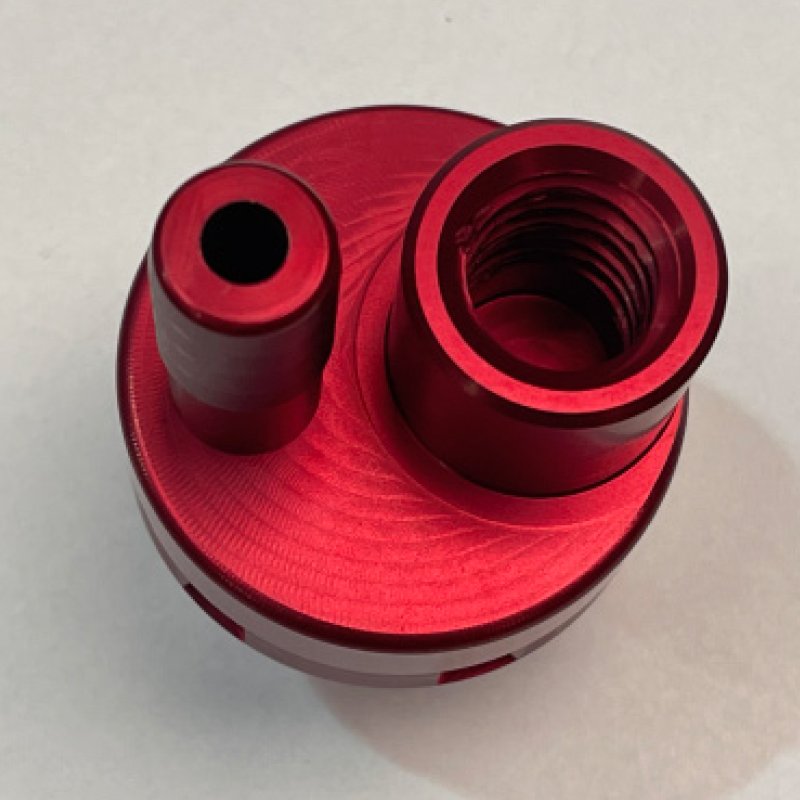

Hose tail connection to suit 1/2” bore tubing

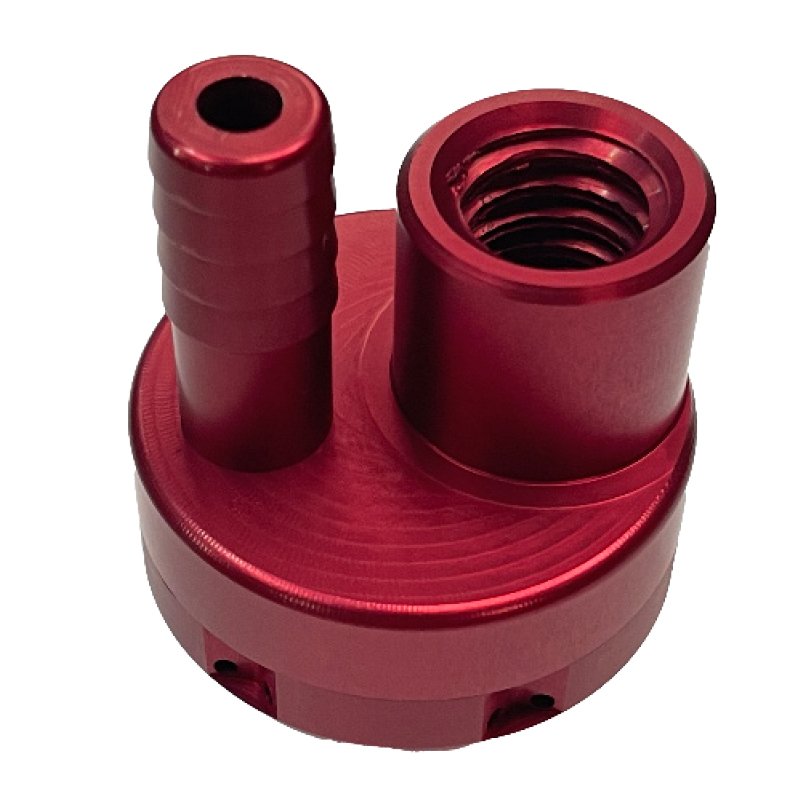

Threaded connection for a chimney rod

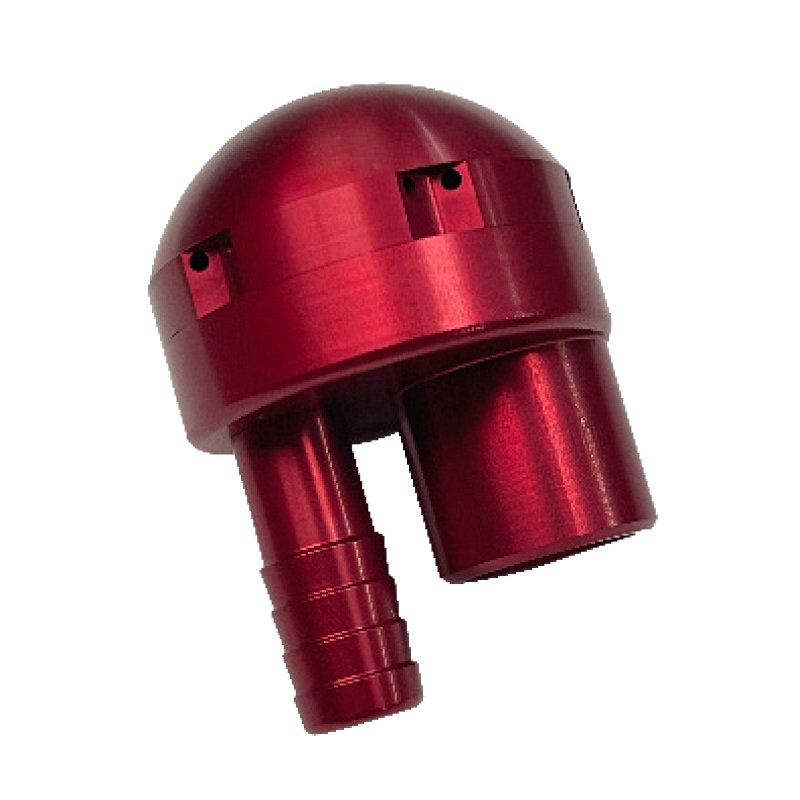

Machined from Aluminium bar and anodised
| undefined | |
|---|---|
| Weight: | 0.16kg |
| Dimensions: | 250mm x 125mm approx |
| Water Inlet: | ½” Hose Tail |
| Chimney Inlet: | Universal Thread |
| Outlet: | 360º Spray Pattern |
| Material: | Aluminium, hard Anodised |
PRODUCT DOWNLOADS
Click below for a technical data sheet for this product
