Premier Hose Technologies Mini Ejector Pump

$0.00

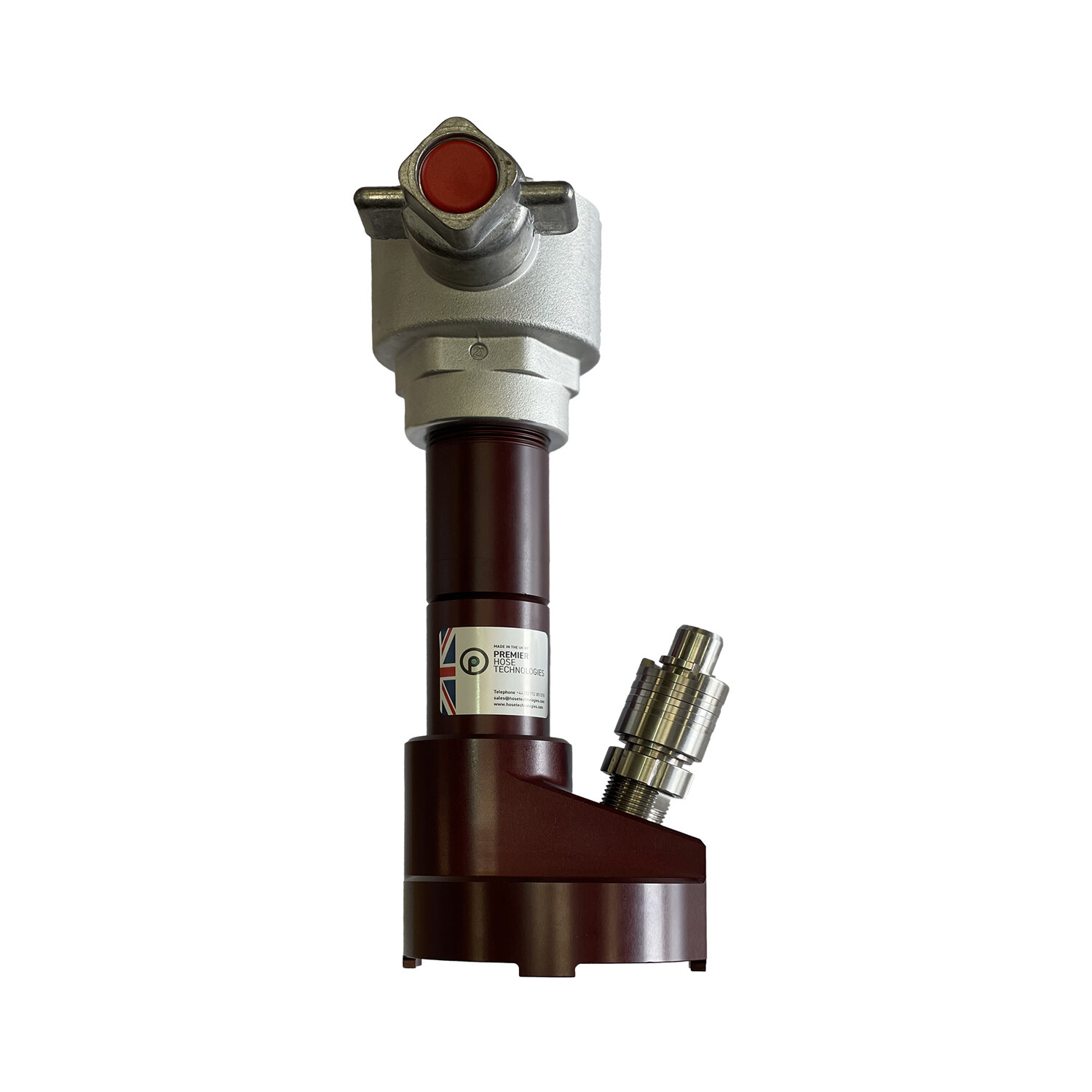

The Mini Ejector Pump is manufactured by Premier Hose Technologies and is designed for pumping out flooded basements or similar excavations.

Machined from Aluminium solid bar and hard anodised to provide improved wear resistance and also excellent corrosion resistance, it has no moving parts and is maintenance free. It very effectively removes water to a depth of approximately 25mm (1”) and can be left to work unsupervised. The pump connects to High Pressure Hose Reel Tubing and uses a venturi system to pump out water through Layflat Delivery Hose.

The Mini Ejector Pump is manufactured by Premier Hose Technologies and is designed for pumping out flooded basements or similar excavations.

Machined from Aluminium solid bar and hard anodised to provide improved wear resistance and also excellent corrosion resistance, it has no moving parts and is maintenance free. It very effectively removes water to a depth of approximately 25mm (1”) and can be left to work unsupervised. The pump connects to High Pressure Hose Reel Tubing and uses a venturi system to pump out water through Layflat Delivery Hose.

Key features:


Angled hose reel connection provides room for easy connection/disconnection

Angled hose reel connection provides room for easy connection/disconnection

Precision machined parts provide high quality and reliable performance

Precision machined parts provide high quality and reliable performance

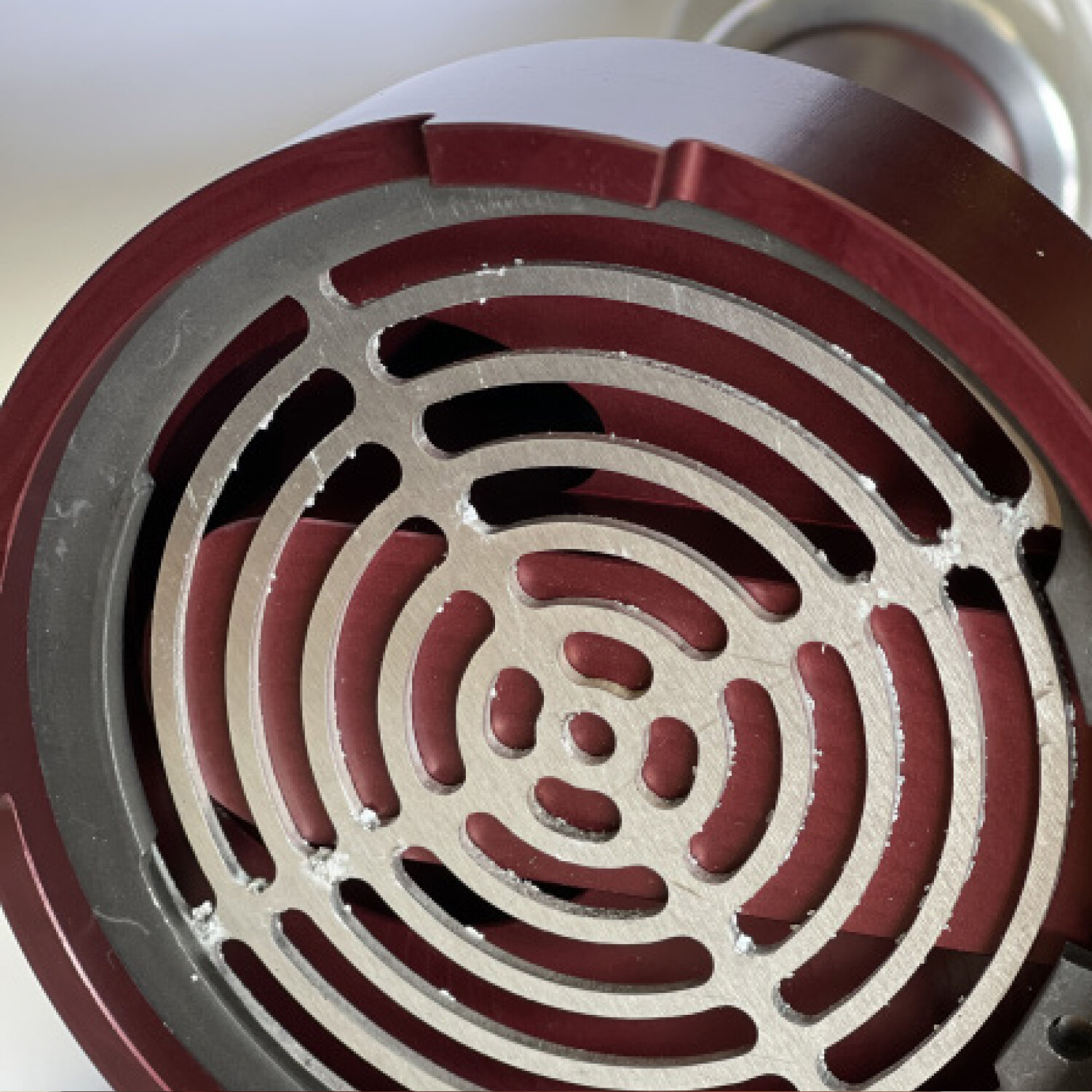

Large intake area with a stainless steel mesh protector

Large intake area with a stainless steel mesh protector

Balanced Robust Design gives strength and stability

Balanced Robust Design gives strength and stability

SPECIFICATIONS
Weight:kg Complete with Hose Reel Coupling and British Instantaneous Female
Dimensions:250mm x 125mm approx
Inlet:¾” BSP female or Sleeve lock Male Hose Reel Coupling
Outlet:1½” BSP male or 2½” Instantaneous Female to BS336. Other connection options are available on request
Material:Aluminium, hard Anodised

PERFORMANCE CHART


Inlet Pressure (Bar)Water Input (Lpm)Water Pick-up at 3mtr Total Head (Lpm)Water Pick-up at 6mtr total head (Lpm)
3308040
44012064

*Max working pressure of 16Bar



PRODUCT DOWNLOADS

Click below for a technical data sheet for this product

Download PDF
